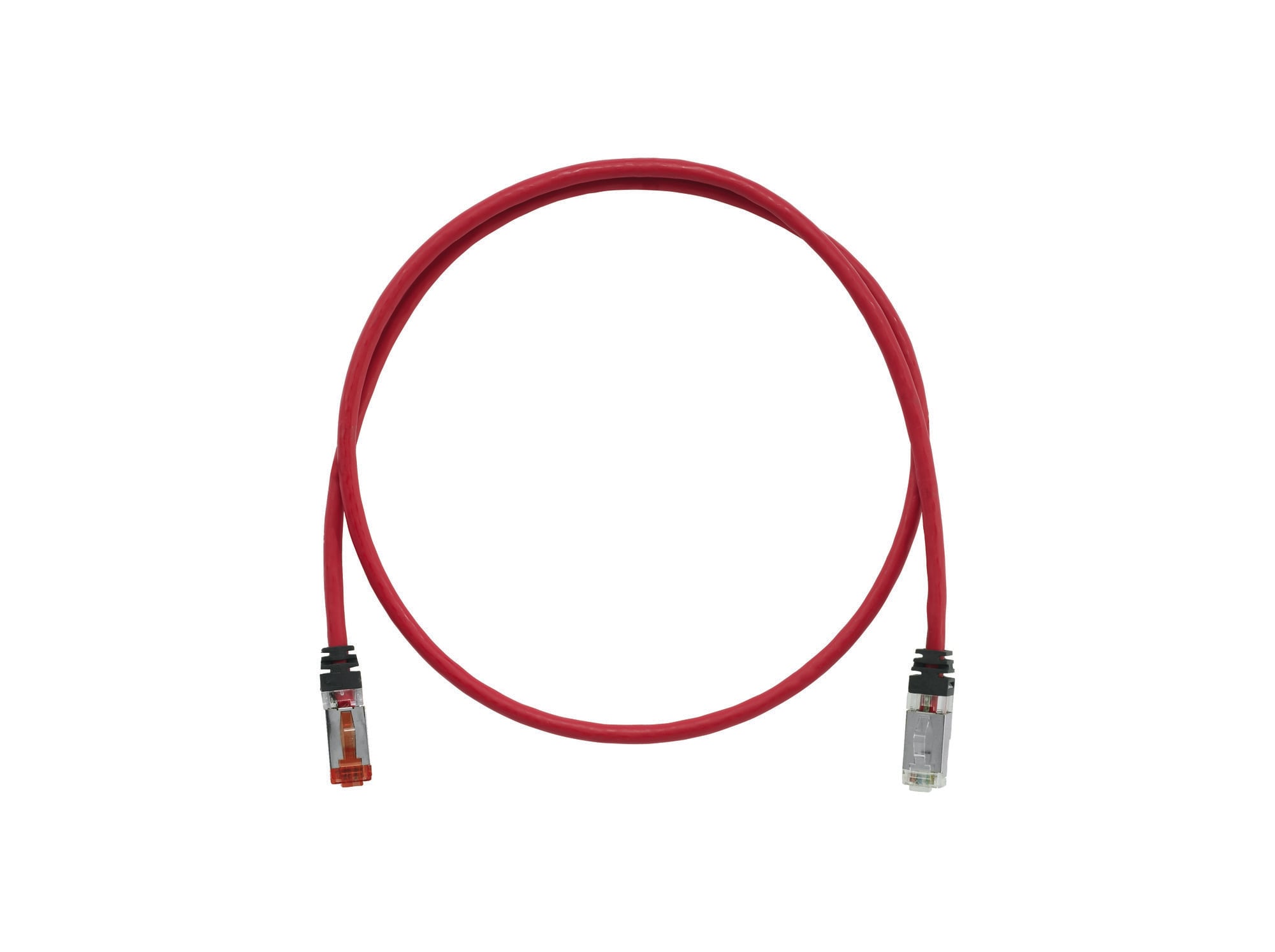

The TX6A 10Gig Keyed Cat 6A STP Patch Cord is a 7-Foot, Red cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable. It's equipped with a TX6A 10Gig Keyed Modular Plug on one end and a Non-Keyed Modular Plug on the other. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | STPK6X7RD |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O consolidation(3) Data center server virtualization (4) Consolidation of network interconnects(5) Back-bone aggregation(6) Parallel processing and high speed computing |
| Color | Red |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Keyed Modular Plug |
| Standard | Exceeds the requirements of ANSI/TIA/EIA568-B.2-10, ISO 11801 Class EA Edition 2.1, and IEEE 802.3an-2006, meets ANSI/TIA-968-A, meets IEC 60603-7, meets IEEE 802.3af and draft requirements of IEEE 802.3at for PoE Plus, UL 1863, RoHS Compliant |
| UPC | 074983118663 |
| GTIN | 00074983118663 |
| Item Type | Keyed Patch Cord |
| Length | 7.00 |
| Length UOM | Inch |
| Outside Diameter | 0.23 IN |
| Temperature Rating | 140 °F |
| Wire Size | 26 |
