Panduit

STPK6X3RD 10Gig PanNet TX6A Class EA Patch Cord With TX6A 10Gig Keyed Modular Plug on One End and TX6A 10Gig Non-Keyed Modular Plug on the Other End, Cat 6A, 26 AWG S/FTP Copper Shielded Stranded Conductor, 3 ft L Cord, Red

MFR:
Panduit
MFR #:
STPK6X3RD
UPC:
074983118649
Item #:
1005157

Availability

Location Available Qty
Available Available to Order

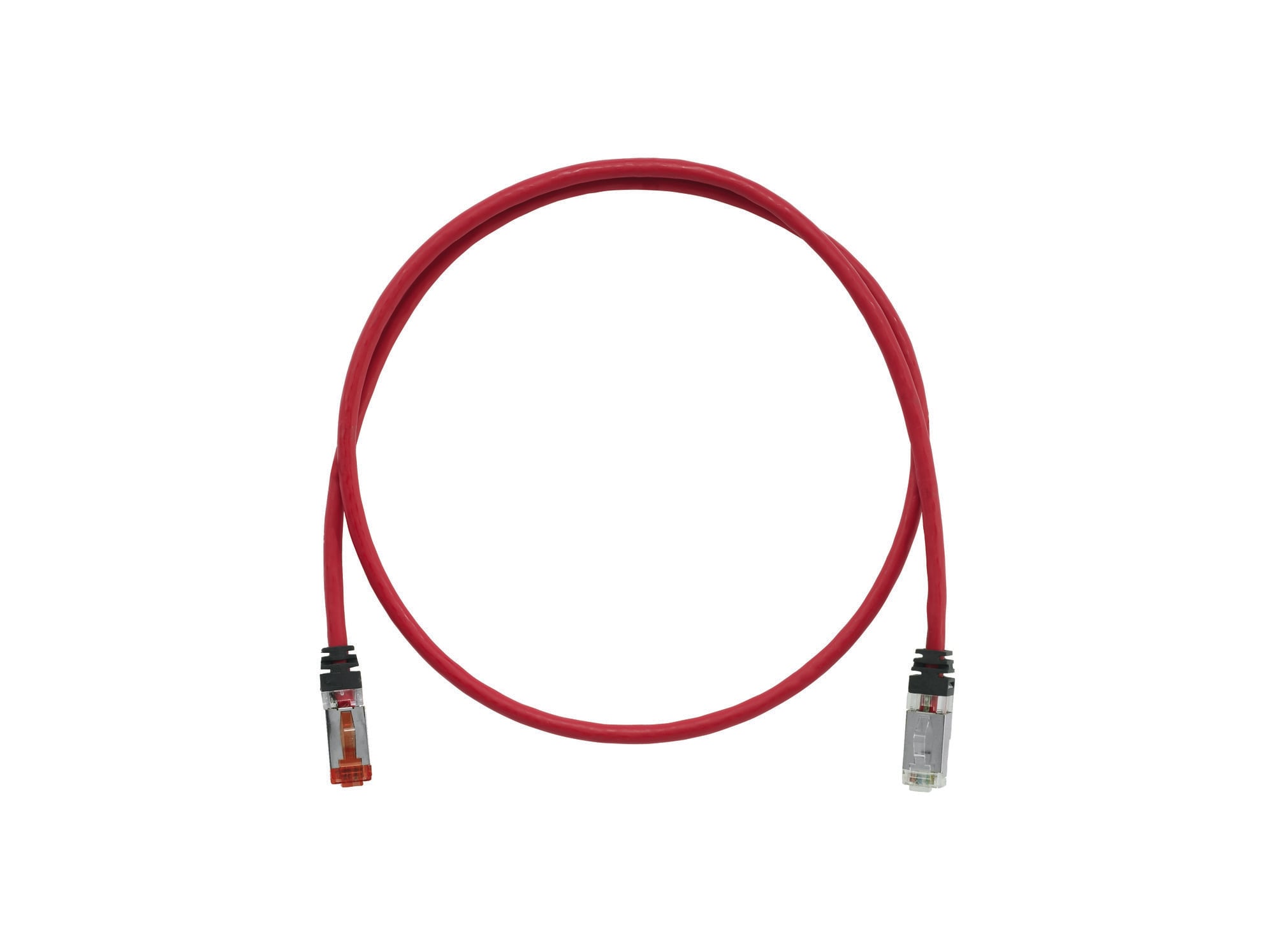

The TX6A 10Gig Keyed Cat 6A STP Patch Cord is a 3-Foot, Red cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable. It's equipped with a TX6A 10Gig Keyed Modular Plug on one end and a Non-Keyed Modular Plug on the other. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Manuals and Documentation
Catalog Number STPK6X3RD
Manufacturer Panduit
Brand Panduit
Country of Origin Multiple
Made in USA No
Application (1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization (4) Consolidation of network interconnects (5) Back-bone aggregation (6) Parallel processing and high speed computing
Color Red
Conductor Material Copper
Jacket Material LSZH Material
Plug Type Keyed Modular Plug
Standard Exceeds the requirements of ANSI/TIA/EIA568-B.2-10, ISO 11801 Class EA Edition 2.1, and IEEE 802.3an-2006, standards for supporting 10GBASE-T transmission over copper twisted pair cabling when used as part of the PANDUIT TX6 10GIG Shielded Copper Cabling
UPC 074983118649
GTIN 00074983118649
Item Type Patch Cord
Length 3.00
Length UOM Inch
Outside Diameter 0.23 IN
Temperature Rating 140 °F
Wire Size 26
