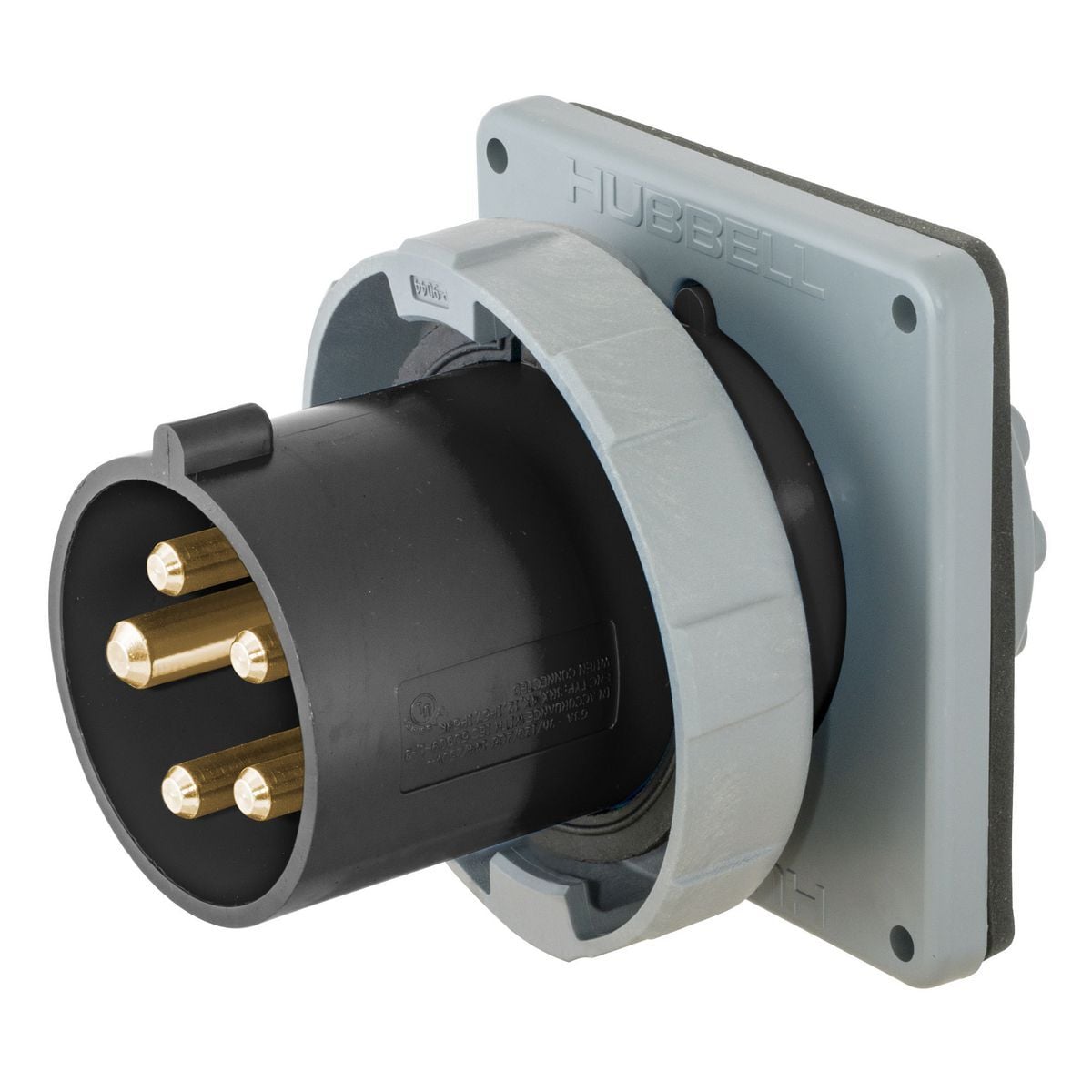

HBL530B5W 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 347/600Y V AC, 30 A, 4 Poles, 5 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL530B5W
- UPC:
- 783585405391
- Item #:
- 1004535
HBL530B5W 3-Phase Flanged Grounding Male Non-NEMA Single Standard Watertight Screw Mount Pin and Sleeve Inlet, 347/600Y V AC, 30 A, 4 Poles, 5 Wires, Black
- MFR #:
- HBL530B5W
- UPC:
- 783585405391
- Item #:
- 1004535
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | HBL530B5W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | High Ampacity Watertight Connections |
| Color | Black |
| Connection | Pressure Screw Terminals |
| Insulation | Insulated Body |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Phase | 3 |
| Special Features | Watertight |
| Standard | CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146032 |
| UPC | 783585405391 |
| GTIN | 00783585405391 |
| Item Type | Watertight Inlet |
| Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact |
| Voltage Rating | 3 Phase Y 347/600 |
| Wattage | 18,000 |
| Wire Size | #12 AWG to #10 AWG |
