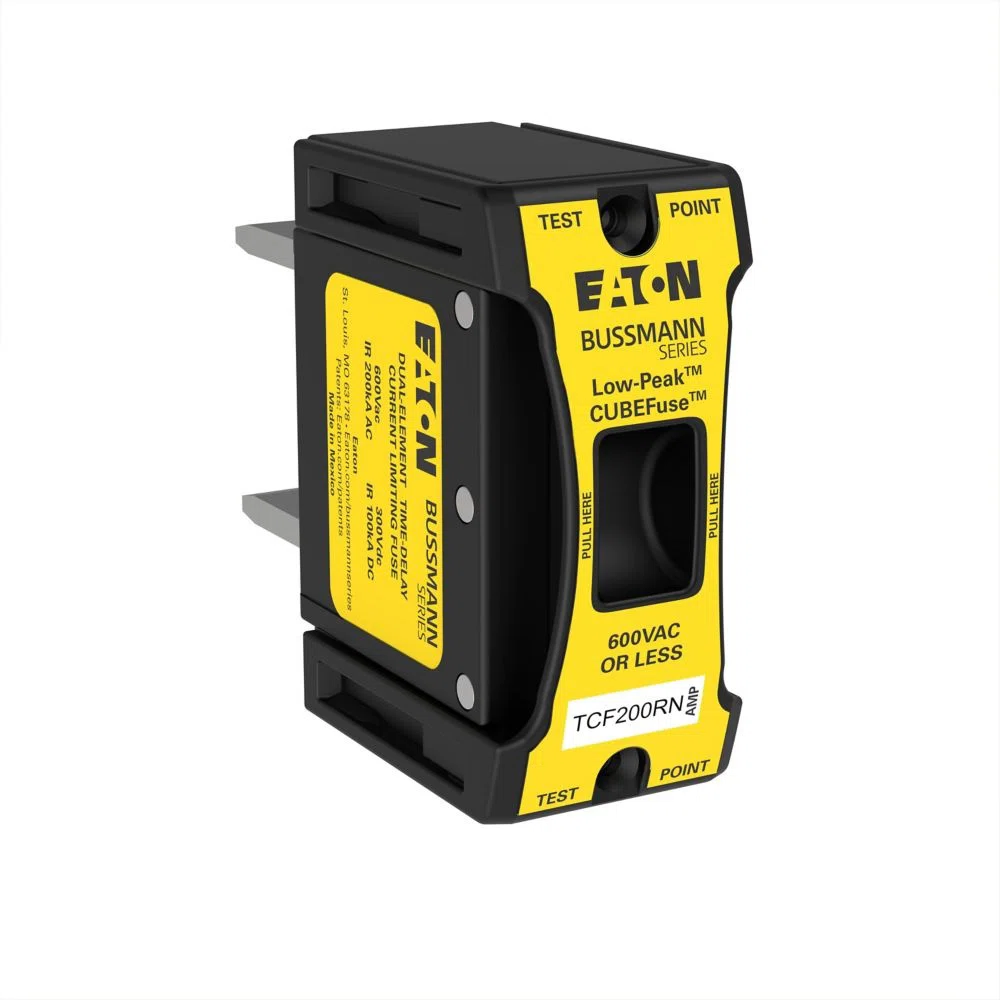

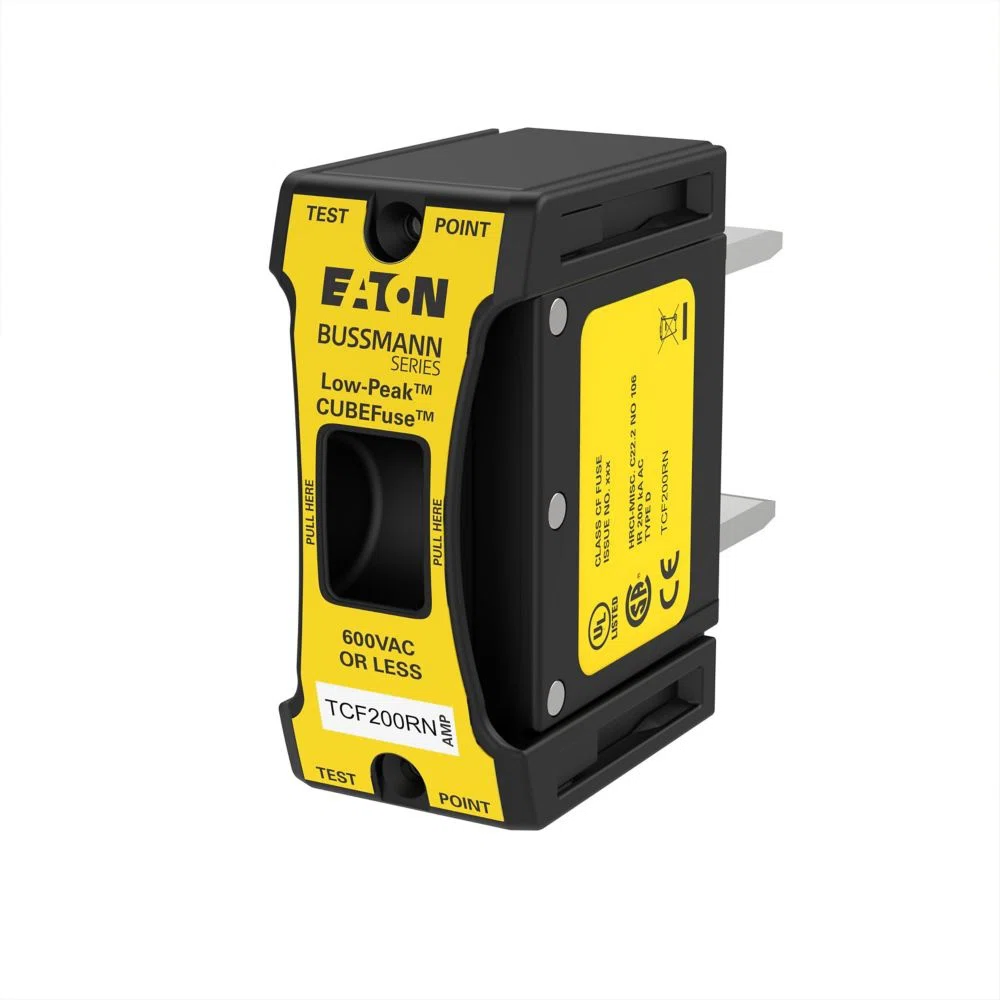

TCF200RN Low-Peak CUBEfuse Non-Indicating Time Delay Fuse, 200 A, 600 V, 200 kA Interrupt, Class: CF, Square Body
- MFR:
- Eaton
- MFR #:
- TCF200RN
- UPC:
- 051712697958
- Item #:
- 1003183
TCF200RN Low-Peak CUBEfuse Non-Indicating Time Delay Fuse, 200 A, 600 V, 200 kA Interrupt, Class: CF, Square Body
- MFR #:
- TCF200RN
- UPC:
- 051712697958
- Item #:
- 1003183
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$596.19
each
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution — requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Manuals and Documentation
Features
- The worlds first finger safe industrial fuse system
- Smallest installed footprint of any UL Class CC, J, or R fuse solution
- UL class CF with Class J time delay electrical performance
- The indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults reduces destructive thermal and magnetic forces
- True dual-element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- Up to 300 kA interrupting rating safely interrupts virtually any fault
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC® motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak™ class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 200 kA rms symmetrical, 100 kA DC interrupting rating
| Manufacturer Part Number | TCF200RN |
| Brand | Bussmann |
| Manufacturer | Eaton |
| UPC | 051712697958 |
| Country Of Origin | MX |
| Amperage Rating | 200 A |
| Material | Glass Filled Polyethersulfone |
| Mounting Type | Holder |
| Series | TCF |
| Type | Non-Indicating Time Delay |
| Voltage Rating | 600 V |
| Alternative Part Number | 14584321 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | UL Listed,RoHS Compliant |
| Application | Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Machinery Disconnects, Finger Safe Systems, Industrial Control and Panel Applications, Stationary Machinery and Equipment Outside Factory |
| Body Size | 2.9 in W x 1.34 in D x 3.62 in H |
| Body Type | Square |
| Class | CF |
| Element | Dual |
| Interrupt Rating | 200 kA |
| Response Time | 10 s |
| Terminal Type | Blade |
