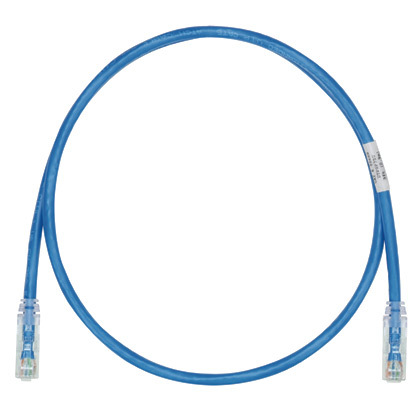

UTPSP4MBUY PanNet TX6 Plus Patch Cord With TX6 PLUS Modular Plugs, Cat 6/Class E, 24 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 4 m L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTPSP4MBUY
- UPC:
- 074983170753
- Item #:
- 1002407
UTPSP4MBUY PanNet TX6 Plus Patch Cord With TX6 PLUS Modular Plugs, Cat 6/Class E, 24 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 4 m L Cord, Blue
- MFR #:
- UTPSP4MBUY
- UPC:
- 074983170753
- Item #:
- 1002407
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The TX6 PLUS Cat 6 UTP Patch Cord is a 4-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | UTPSP4MBUY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) 2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM 3) Token ring 4/16 4) Digita |
| Color | Blue |
| Conductor Material | Copper |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E channel and component standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; R |
| UPC | 074983170753 |
| GTIN | 00074983170753 |
| Item Type | Patch Cord |
| Length | 13.12 |
| Length UOM | Inch |
| Outside Diameter | 0.23 IN |
| Temperature Rating | 140 °F |
| Wire Size | 24 |
