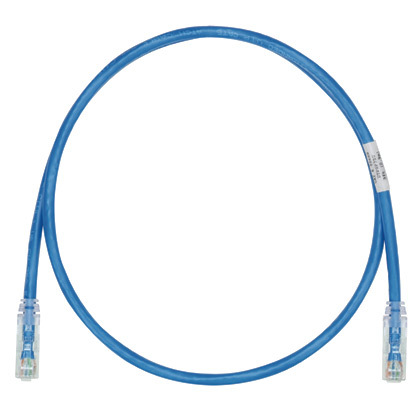

UTPSP40MBUY PanNet TX6 Plus Class EA Patch Cord With TX6 PLUS Modular Plugs on Each End, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 40 m L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTPSP40MBUY
- UPC:
- 074983324279
- Item #:
- 1002405
UTPSP40MBUY PanNet TX6 Plus Class EA Patch Cord With TX6 PLUS Modular Plugs on Each End, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 40 m L Cord, Blue
- MFR #:
- UTPSP40MBUY
- UPC:
- 074983324279
- Item #:
- 1002405
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The TX6 PLUS Cat 6 UTP Patch Cord is a 40-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals and Documentation
| Catalog Number | UTPSP40MBUY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digit |
| Color | Blue |
| Conductor Material | Copper |
| Plug Type | Modular Plug |
| Standard | ANSI/TIA-568-C.2, ISO 11801 Class EA, IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863, RoHS Compliant |
| UPC | 074983324279 |
| GTIN | 00074983324279 |
| Item Type | Patch Cord |
| Length | 131.24 |
| Length UOM | Inch |
| Outside Diameter | 0.23 IN |
| Temperature Rating | 140 °F |
| Wire Size | 24 |
