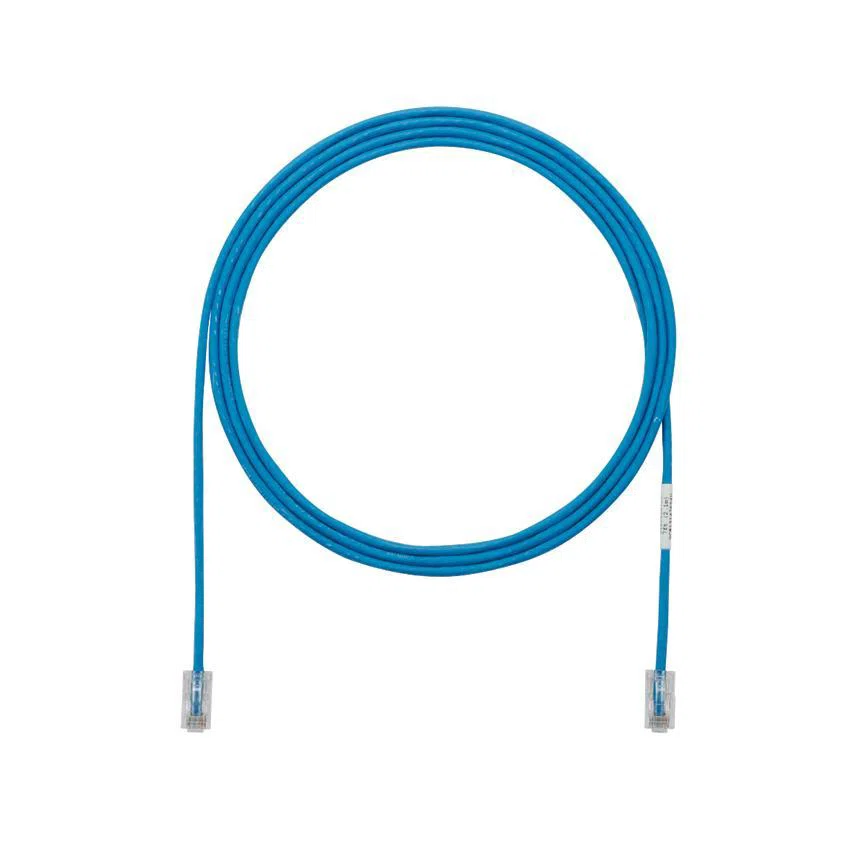

UTP28CH4MBU PanNet Pan-Plug TX5e-28 Class D Small Diameter Patch Cord With Pan-Plug Modular Plugs on Each End, Cat 5E, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 4 m L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTP28CH4MBU
- UPC:
- 074983433711
- Item #:
- 1002399
UTP28CH4MBU PanNet Pan-Plug TX5e-28 Class D Small Diameter Patch Cord With Pan-Plug Modular Plugs on Each End, Cat 5E, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 4 m L Cord, Blue
- MFR #:
- UTP28CH4MBU
- UPC:
- 074983433711
- Item #:
- 1002399
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Category 5E/Class D, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Manuals and Documentation
Features
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch
- Smaller diameter, flexible cable design
- Robust construction
- Smaller diameter and flexible cable design
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle free latch
- Flexible stranded cable
- Provides identification of performance level, length and quality control number for future traceability
- Robust construction
| Manufacturer Part Number | UTP28CH4MBU |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983433711 |
| EAN | 0074983433711 |
| Category Type | Cat 5E |
| Color | Blue |
| Conductor Size | 28 AWG |
| Conductor Type | U/UTP Copper Stranded |
| Connector Type | RJ45 Modular Plug Boot |
| Cord Length | 4 m |
| Jacket Color | Blue |
| Series | UTP28CH |
| Temperature Rating | 167 deg F |
| Type | Class D Small Diameter |
| Alternative Part Number | 7510826 | 11260784 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications, c | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ISO 11801 Class D Edition 2.1 | IEC 60603-7 | IEEE 802.3af, 802.3at, 802.3bt Type 3, Type 4 for PoE Compliant | cULus Listed | UL 1863, cCSA C22.2, UL File No. E129886, UL 94 V-0 Flammability Rating | CE Certified |
| Application | 1000BASE-T Gigabit Ethernet, 100BASE-T Fast Ethernet, 155 Mbps ATM, 622 Mbps ATM, Voice/Data Systems and Voice Over Internet Protocol (VoIP)Applications |
