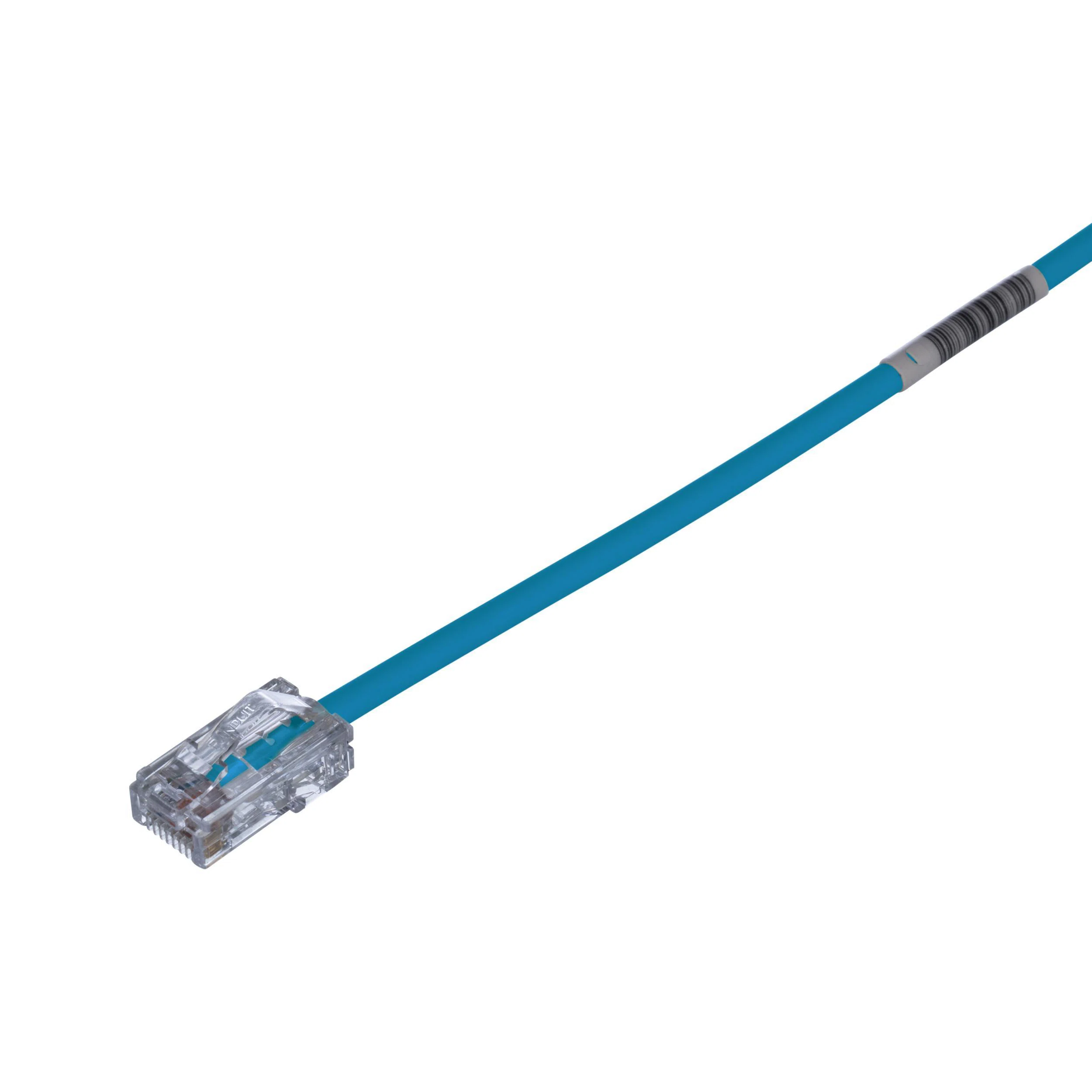

UTP28CH3MBU PanNet Pan-Plug TX5e-28 Small Diameter Patch Cord, Cat 5e/Class D, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 3 m L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTP28CH3MBU
- UPC:
- 074983433704
- Item #:
- 1002397
UTP28CH3MBU PanNet Pan-Plug TX5e-28 Small Diameter Patch Cord, Cat 5e/Class D, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 3 m L Cord, Blue
- MFR #:
- UTP28CH3MBU
- UPC:
- 074983433704
- Item #:
- 1002397
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Cat 5e/class D, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. patch cords are offered in multiple lengths and colors for design flexibility.
Manuals and Documentation
Features
- 100% performance tested for wire map, next and return loss
- Centred de-embedded plug
- Integral pair manager optimizes performance and consistency by reducing untwist at plug
- Patented tangle-free latch - prevents snags and provides easy release, saving time and tangle providing reliability on frequent moves, adds and changes
- Smaller diameter, flexible cable design
- Robust construction
- 28 AWG UTP patch cord with Pan-Plug® modular plugs on each end
- UL 94V-0 rated clear polycarbonate housing plug
- Smaller diameter, flexible cable design
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle-free latch
- Flexible stranded cable
- Provides identification of performance level, length and quality control number for traceability
- Robust construction
- Variety of cable colors and lengths
- UL94V-0 rated clear polycarbonate plug housing
- Gold plated phosphor bronze, contacts plated with 50 microinches of gold for superior performance
| Manufacturer Part Number | UTP28CH3MBU |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983433704 |
| EAN | 0074983433704 |
| Category Type | Cat 5e/Class D |
| Color | Blue |
| Conductor Size | 28 AWG |
| Conductor Type | U/UTP Stranded Copper |
| Connector Type | RJ45 Modular Plug |
| Cord Length | 3 m |
| Jacket Color | Blue |
| Series | UTP28CH |
| Temperature Rating | 167 deg F |
| Type | Small Diameter |
| Alternative Part Number | 7510818 | 11260816 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ANSI/TIA-568-C.2 | ANSI/TIA-1096-A | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt Type 3 and Type 4 for PoE | UL 1863 | IEC 60603-7 | cULus Listed | CAN/CSA C22.2 | UL File No. E129886 | CE Certified | CM/LSZH Dual Rated Flammability Rating | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80 |
| Application | 1000BASE-T Gigabit Ethernet, 100BASE-T Fast Ethernet, 155 Mbps ATM, 622 Mbps ATM, Voice/Data Systems and Voice Over Internet Protocol (VoIP) Applications |
