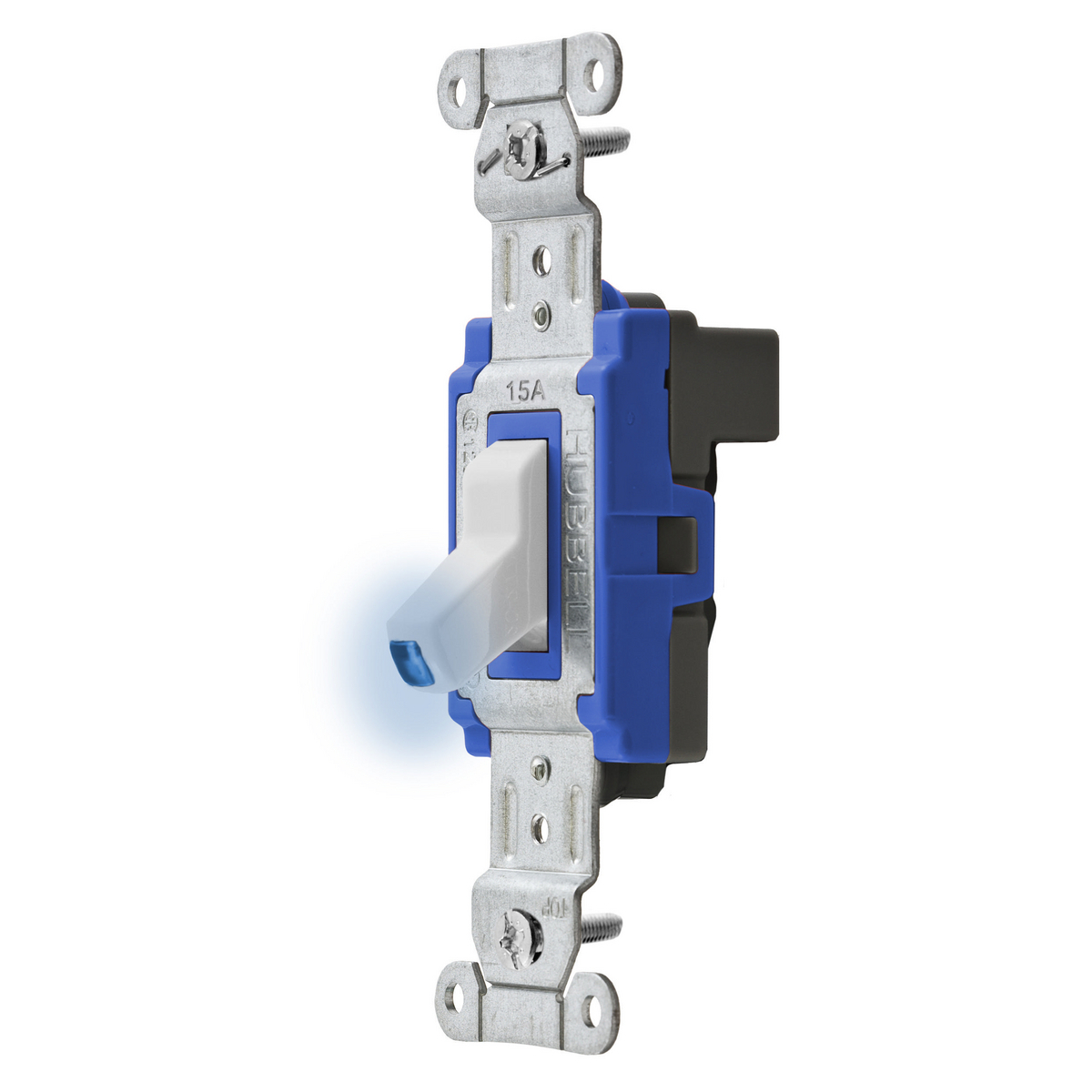

SNAP1201ILWNA Heavy Duty Illuminated Standard Toggle Switch, 120 to 277 V AC, 15 A, 4155 W Power Rating, 2-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- SNAP1201ILWNA
- UPC:
- 783585186139
- Item #:
- 605807
SNAP1201ILWNA Heavy Duty Illuminated Standard Toggle Switch, 120 to 277 V AC, 15 A, 4155 W Power Rating, 2-Position Contact
- MFR #:
- SNAP1201ILWNA
- UPC:
- 783585186139
- Item #:
- 605807
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$21.27
each
SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.
Manuals and Documentation
| Catalog Number | SNAP1201ILWNA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Positive Snap |
| Actuator | Toggle |
| Amperage Rating | 15 |
| Application | SNAPConnect Heavy Duty |
| Color | White |
| Connection | Connectorized |
| Contact Configuration | Two Position |
| Contact Rating | Per UL 20 |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 50,000 Cycles |
| Special Features | SNAP Connect, LED Indicator |
| Standard | UL Listed |
| UPC | 783585186139 |
| GTIN | 00783585186139 |
| Item Type | Toggle |
| Size | 4.18 in x 1.3 in x 1.74 in |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 120-277 |
| Wattage | 4155 W |
