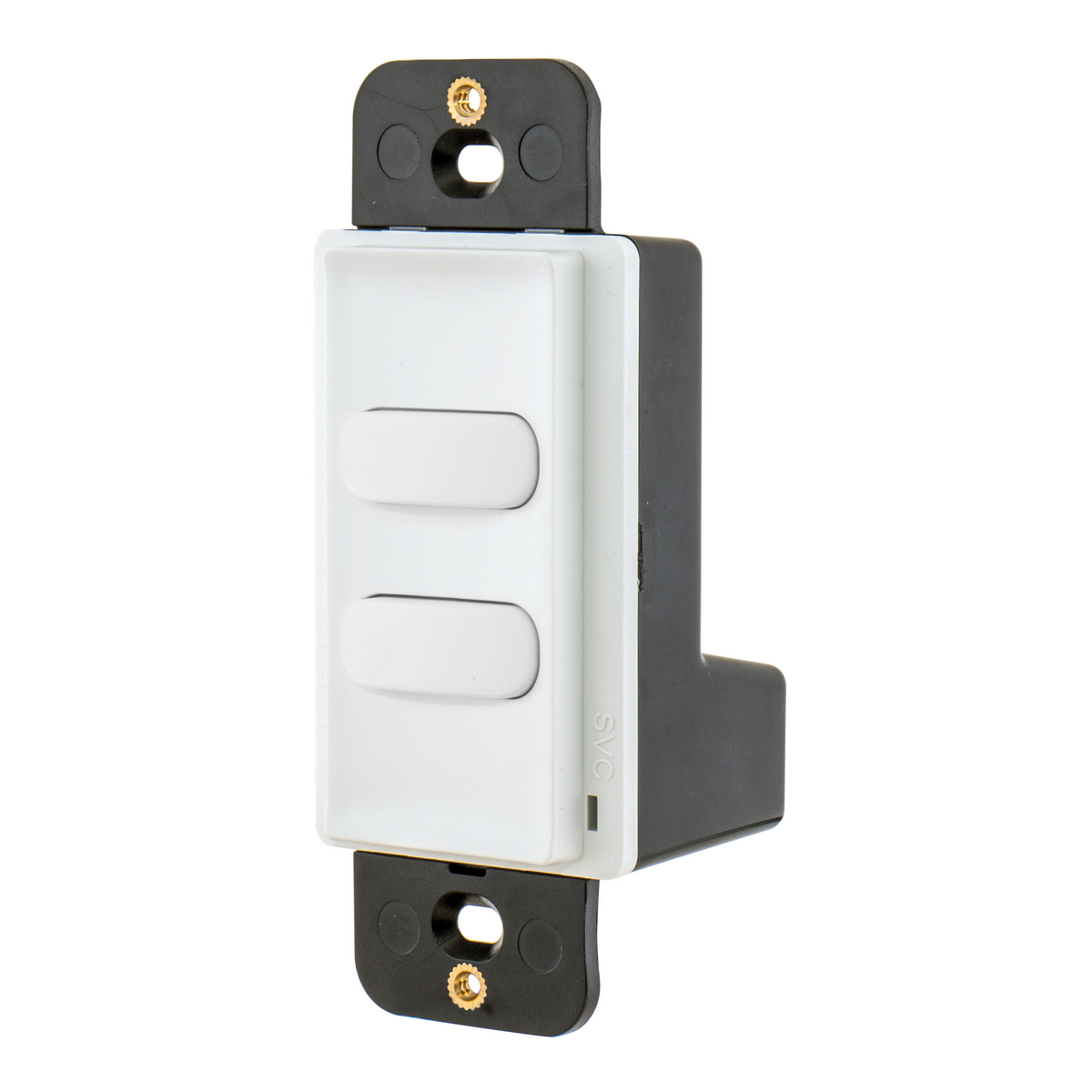

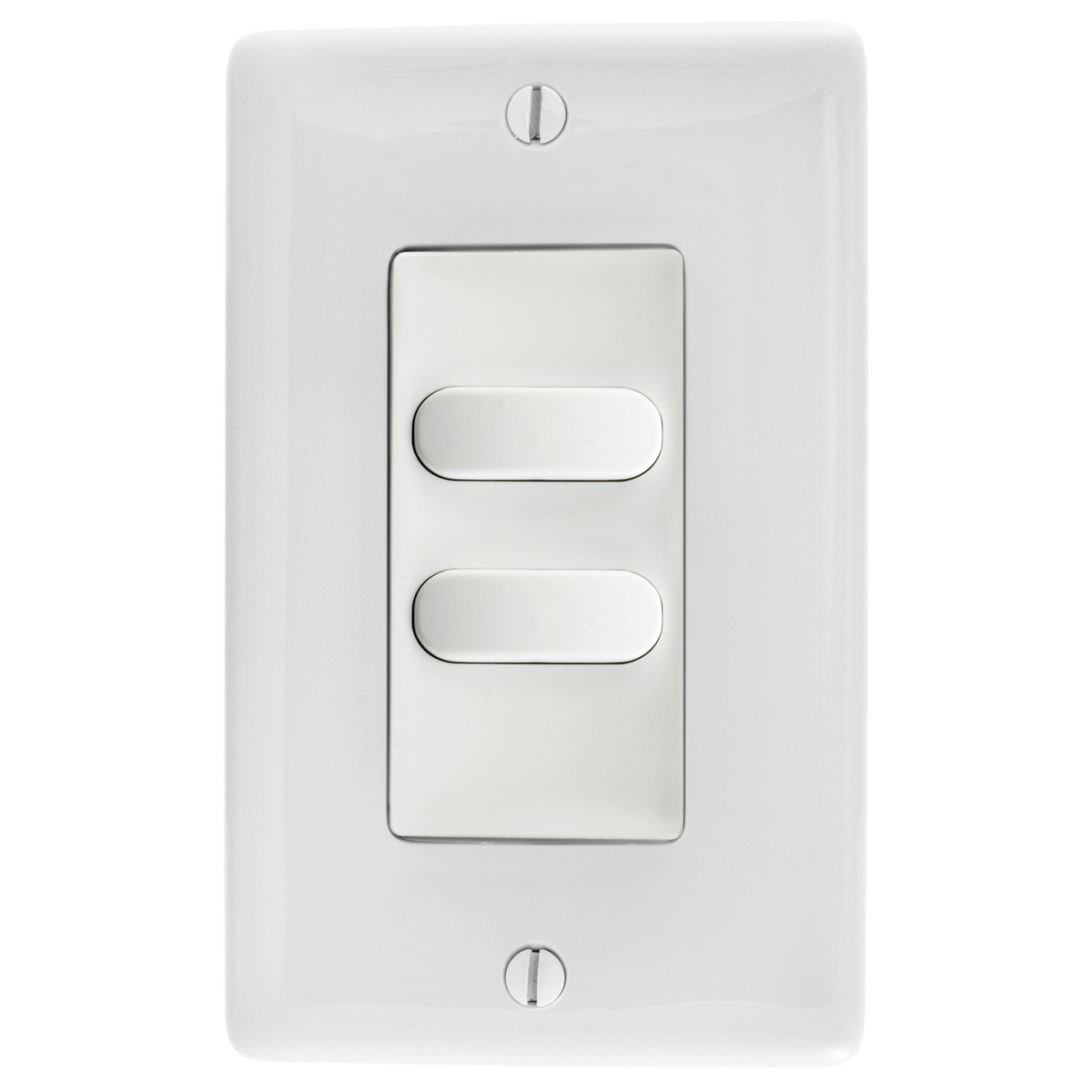

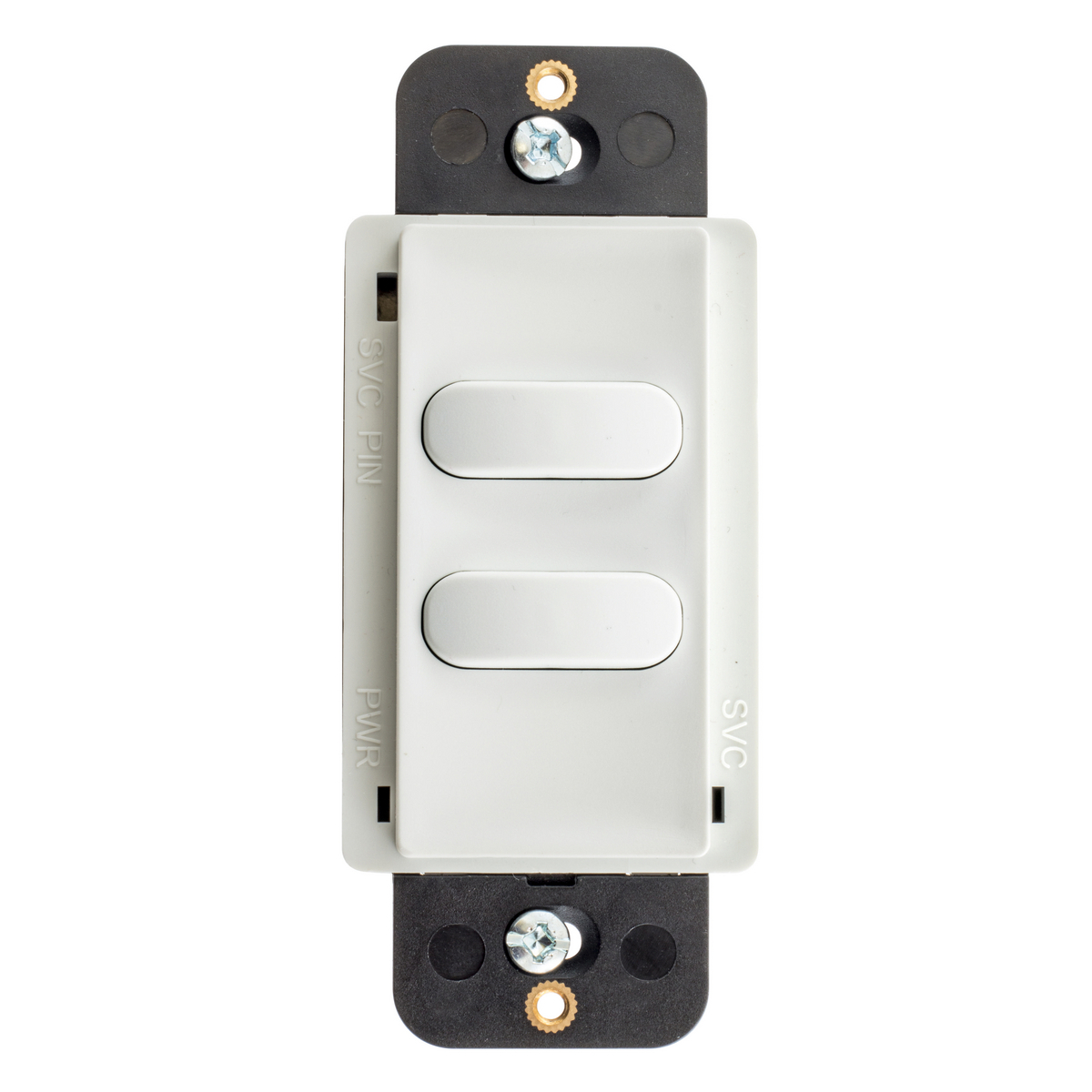

DSM30W2 2-Button 2-Position Low Voltage Standard Decorator Switch, 24 VDC, 100 mA
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DSM30W2
- UPC:
- 783585159409
- Item #:
- 256892
DSM30W2 2-Button 2-Position Low Voltage Standard Decorator Switch, 24 VDC, 100 mA
- MFR #:
- DSM30W2
- UPC:
- 783585159409
- Item #:
- 256892
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$84.19
each
Centralized Control - Load:Logic Control Panels - These control panels feature a broad set of programming capabilities allowing for manual or scheduled control of up to 48 loads. Designed to be a cost-effective solution for compliance with the latest energy codes and standards, the panel offers maximum flexibility to a wide range of small to medium commercial and institutional applications. The commissioning process is achieved via simple and intuitive scrolling menus. To program, check status or updates, pre-programmed scenarios that can be saved and exported in a portable document file (PDF) format.
Manuals and Documentation
| Catalog Number | DSM30W2 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Non-Snap |
| Actuator | Rocker |
| Amperage Rating | 100m |
| Application | Lighting Control Switches |
| Color | White |
| Connection | Terminal Screws |
| Contact Configuration | Momentary |
| Contact Rating | Per UL 20 |
| Material | Composite |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 10,000 |
| Special Features | Low Voltage, Momentary |
| Standard | NEMA WD1, UL20 |
| UPC | 783585159409 |
| GTIN | 00783585159409 |
| Item Type | Accessories;Low Voltage |
| Size | Standard Sized |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | 32 Degrees F to 122 Degrees F (0 Degrees C to 50 Degrees C) |
| Voltage Rating | 24 |
