SCHNEIDER ELECTRIC

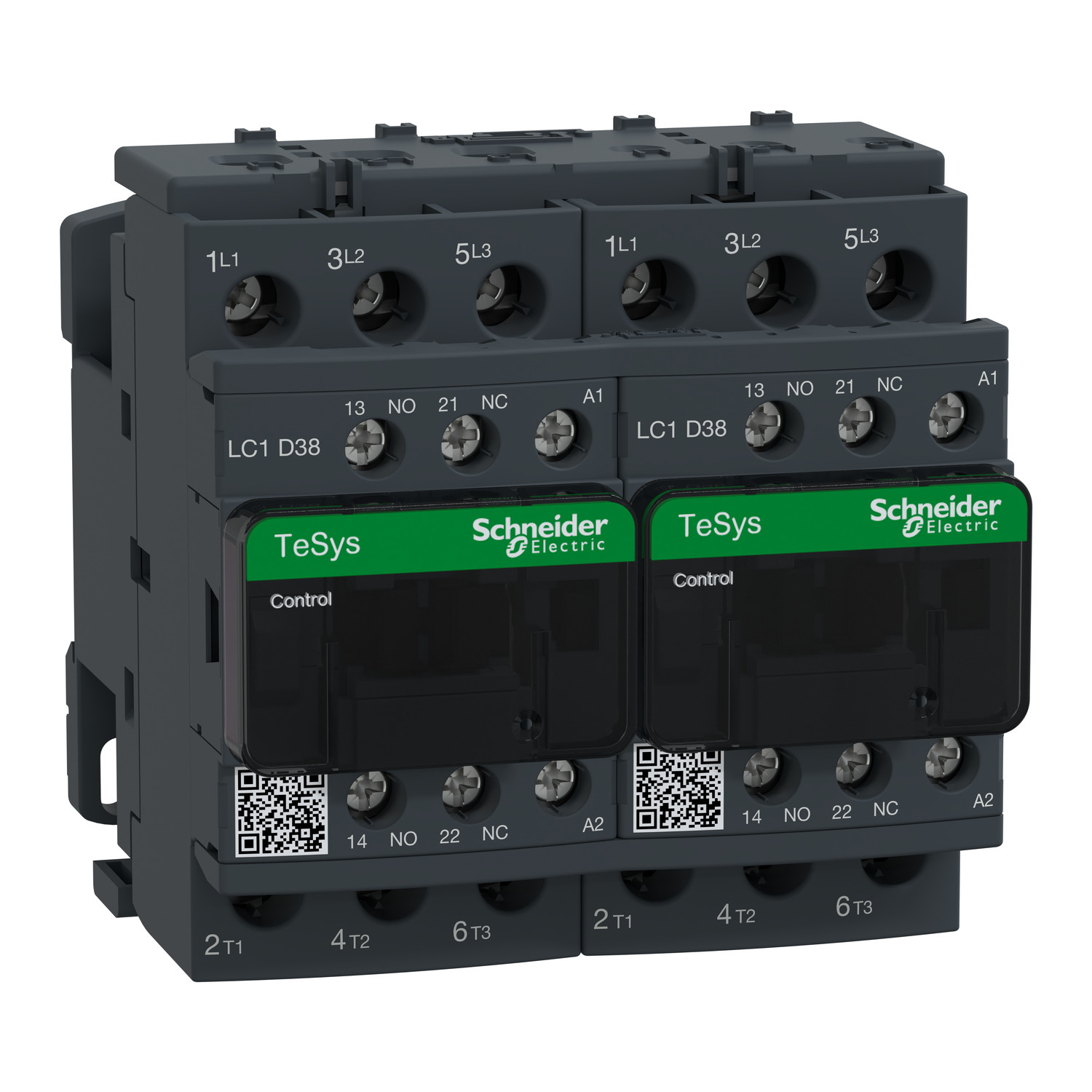

TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 38 A - 24 V AC coil

MFR:
Schneider Electric
MFR #:
LC2D38B7
Item #:
1637905

Availability

Location Available Qty
Available Available to Order
$906.91 each

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 38A/690V AC-3 (18.5kW@400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Manuals and Documentation
Catalog Number LC2D38B7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Resistive load;motor control
Coil Voltage 24 V AC 50/60 Hz
Contact Configuration 1 NO + 1 NC
Standard UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA;CB
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1475078&lang=en-us
GTIN 03389110391640
Item Type Reversing contactor;LC2D
