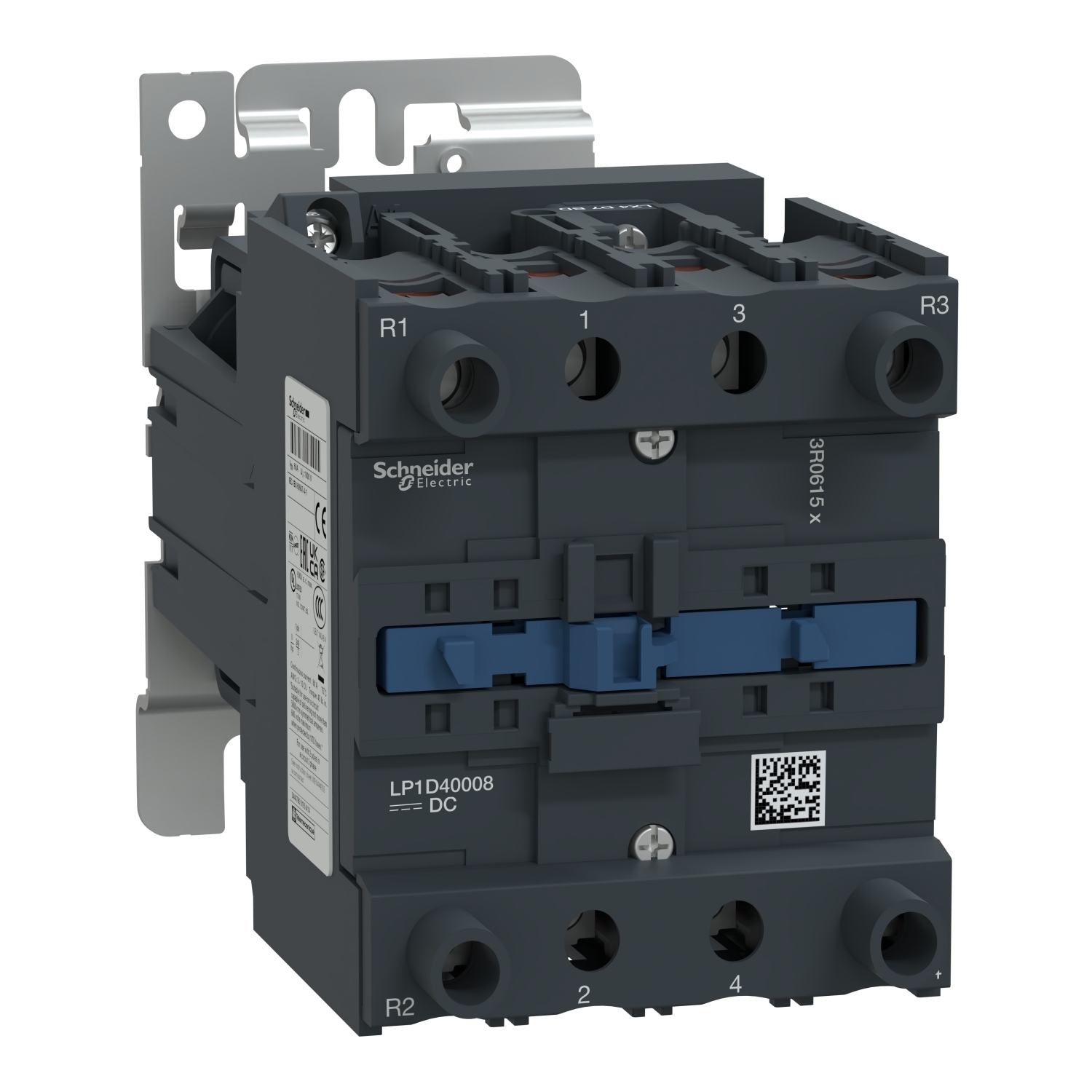

LP1D40008ED LP1D Series Contactor, 48 V DC v coil, 60 A, 2 NO + 2 NC contact, 4 poles

MFR:
Schneider Electric
MFR #:
LP1D40008ED
Item #:
1568108

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 48 VDC coil with transient suppressor module. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.17 inches deep. It weighs 4.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Manuals and Documentation
Catalog Number LP1D40008ED
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Czech Republic
Made in USA No
Application Resistive load
Coil Voltage 48 V DC
Connection Power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: solid;power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid;control circuit: screw clamp terminals 2 1-4 m
Contact Configuration 2 NO + 2 NC
Mounting Rail Plate
Special Features Built-in bidirectional peak limiting diode suppressor
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=638078&lang=en-us
GTIN 03389110200133
Item Type Contactor
